MCF-003
Product Data
| Type of Power Supply | DC |
|---|---|
| Size (mm) | 50×50mm |
| Thickness (mm) | 4.8mm |
| Operating Temperature (℃) | 0～70℃ |
| Life (Hour) *1 |
Ambient Temperature 70℃ 90s on/30s off 2,000 Hours |
| Weight (g) | Approximately 17g |
| Direction of Rotation | Clockwise |
| Type of Motor | 3-Phase |
| Output Signal | FG |
| Speed Control | - |
INPUT
| Rated Voltage (V) | 5 |
|---|---|
| Operating Voltage Range (V) | 2.5～5.5 |
| Rated Current (A) | 0.34 |
| Rated Power Consumption (W) | 1.7 |
OUTPUT
| Rated Rotational Speed (r/min) | 5000 |
|---|---|
| Maximum Airflow (m3/min) *2 | 0.04 |
| Maximum Static Pressure (Pa) *2 | 39 |
| Noise (dBA) at 1m *2 | 36 |

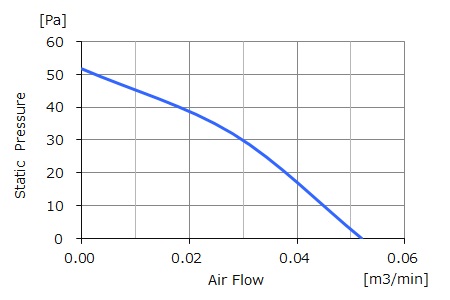

| Characteristic Curve |  |

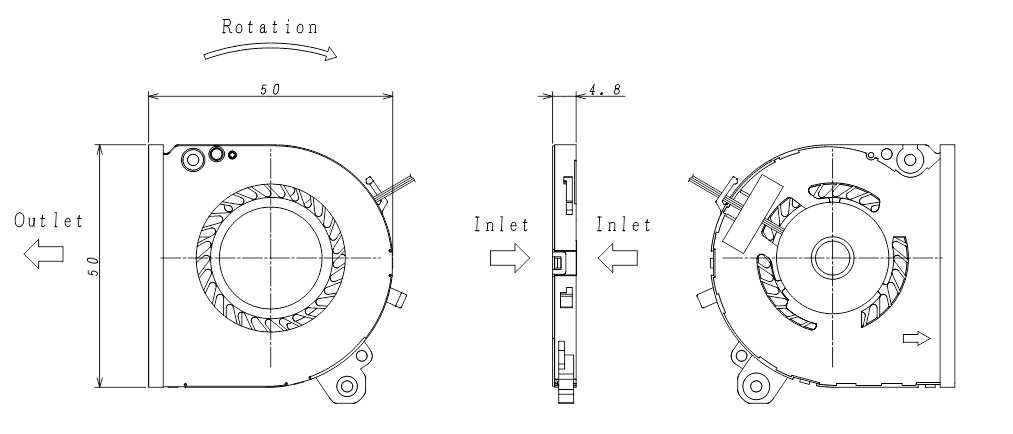

| Drawing of Externals |  |
- *1Free Air, Continuous Operation, MTTF
- *2Performance is for reference purpose only and is not guaranteed.
Specifications are subject to change without prior notice for improvement, etc.
