MCF-009
Product Data
| Type of Power Supply | DC |
|---|---|
| Size (mm) | 60×55mm |
| Thickness (mm) | 11mm |
| Operating Temperature (℃) | -10～60℃ |
| Life (Hour) *1 |
Ambient Temperature 60℃ 30,000 Hours |
| Weight (g) | Approximately 14.8g |
| Direction of Rotation | Counterclockwise |
| Type of Motor | Single Phase |
| Output Signal | FG |
| Speed Control | - |
INPUT
| Rated Voltage (V) | 5 |
|---|---|
| Operating Voltage Range (V) | 3.0～5.5 |
| Rated Current (A) | 0.33 |
| Rated Power Consumption (W) | 1.65 |
OUTPUT
| Rated Rotational Speed (r/min) | 4550 |
|---|---|
| Maximum Airflow (m3/min) *2 | 0.075 |
| Maximum Static Pressure (Pa) *2 | 50 |
| Noise (dBA) at 1m *2 | 35 |

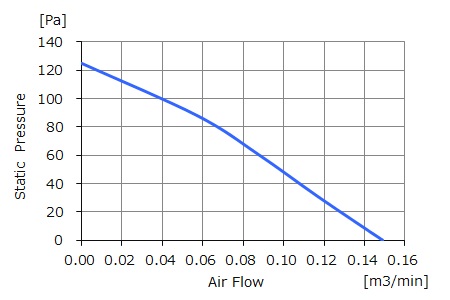

| Characteristic Curve |  |

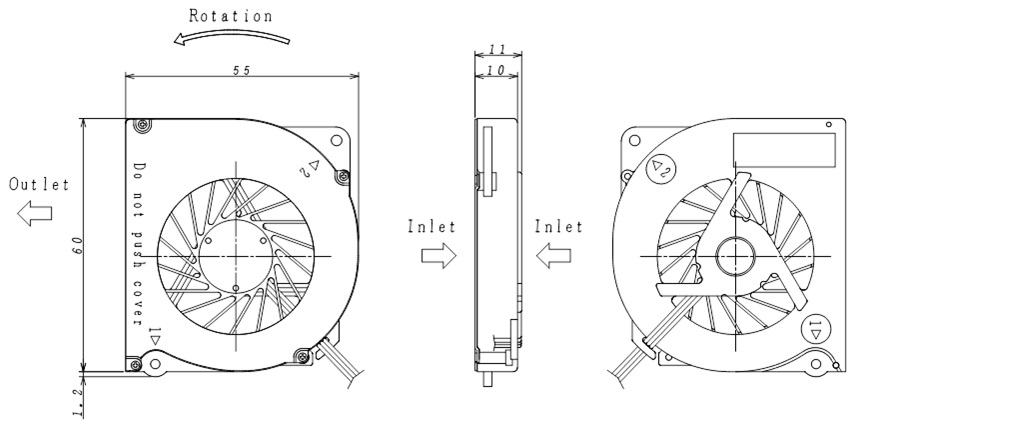

| Drawing of Externals |  |
- *1Free Air, Continuous Operation, MTTF
- *2Performance is for reference purpose only and is not guaranteed.
Specifications are subject to change without prior notice for improvement, etc.
