MCF-020
Product Data
| Type of Power Supply | DC |
|---|---|
| Size (mm) | 40×40mm |
| Thickness (mm) | 5mm |
| Operating Temperature (℃) | -10～60℃ |
| Life (Hour) *1 |
Ambient Temperature 30℃ 30,000 Hours |
| Weight (g) | Approximately 11g |
| Direction of Rotation | Clockwise |
| Type of Motor | Single Phase |
| Output Signal | FG |
| Speed Control | - |
INPUT
| Rated Voltage (V) | 5 |
|---|---|
| Operating Voltage Range (V) | 2.8～5.0 |
| Rated Current (A) | 0.2 |
| Rated Power Consumption (W) | 1 |
OUTPUT
| Rated Rotational Speed (r/min) | 6900 |
|---|---|
| Maximum Airflow (m3/min) *2 | 0.04 |
| Maximum Static Pressure (Pa) *2 | 100 |
| Noise (dBA) at 1m *2 | 45(30cm) |

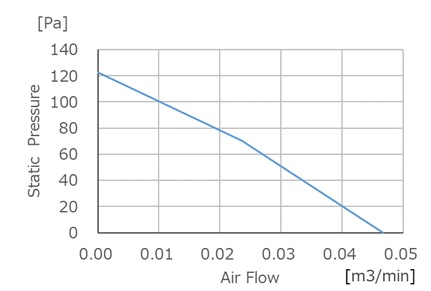

| Characteristic Curve |  |
| Drawing of Externals |  |
- *1Free Air, Continuous Operation, MTTF
- *2Performance is for reference purpose only and is not guaranteed.
